As a professional China manufacturer, Xinda Chemical's PPH vacuum metering tank is designed for the harsh working conditions of chemical, pharmaceutical and other industries. The main body of the equipment uses high crystalline polypropylene homopymers (PPH) to form at one time through the spiral extrusion and winding process, which ensures that the tank has no welds, high overall strength and excellent sealing. It can safely handle strong corrosive media such as hydrochloric acid, hydrofluoric acid and various organic solvents.
The equipment integrates a precise liquid level or weight measurement system, which can realize precise quantitative control and transportation of highly corrosive and high-purity liquid materials in a vacuum environment. It is widely used in the continuous batching of fine chemicals, synthetic reaction feed in the pharmaceutical industry, and the preparation of new energy battery materials and other high-demand fields.It is a more reliable and economical modern solution to replace traditional FRP or metal lining metering equipment.
|
Item |
PPH (Reinforced and Toughened Polypropylene) |
PP (Polypropylene) |
|
Material Type |
Reinforced and toughened modified polypropylene |
Ordinary polypropylene |
|
Chemical Resistance |
Resistant to most organic acids, inorganic acids, alkali salts, and some organic solvents |
General chemical resistance, not resistant to strong acids or alkalis |
|
Temperature Range |
-10°C ~ 90°C |
-10°C ~ 80°C |
|
Hygiene and Safety |
Non-toxic, odorless, complies with hygiene standards for pharmaceuticals, food, and other industries |
Non-toxic, odorless, meets basic hygiene requirements |
|
Long-Term Usability |
Maintains good long-term usability and stress resistance even at higher temperatures |
Prone to aging and deformation at higher temperatures |
|
Applicable Fields |
Pharmaceuticals, food, chemical industries requiring high corrosion resistance and hygiene standards |
General chemical, environmental protection, and other fields |

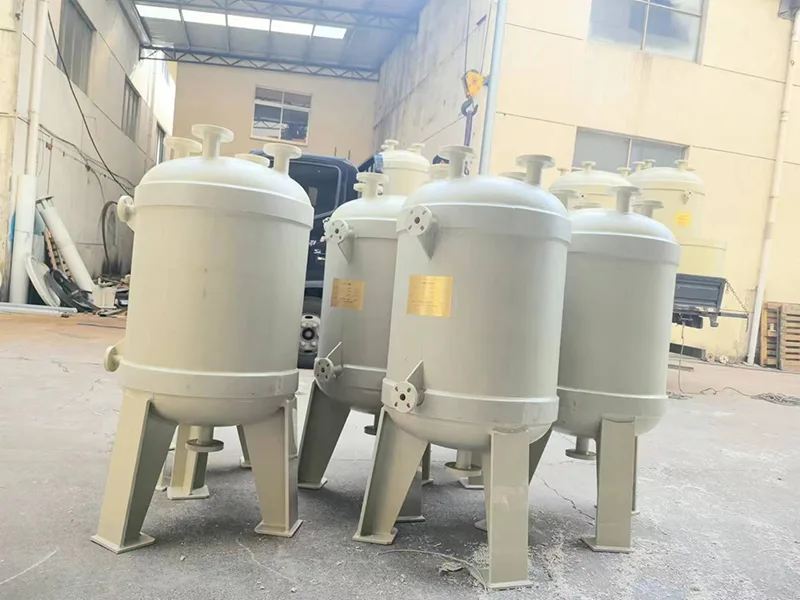

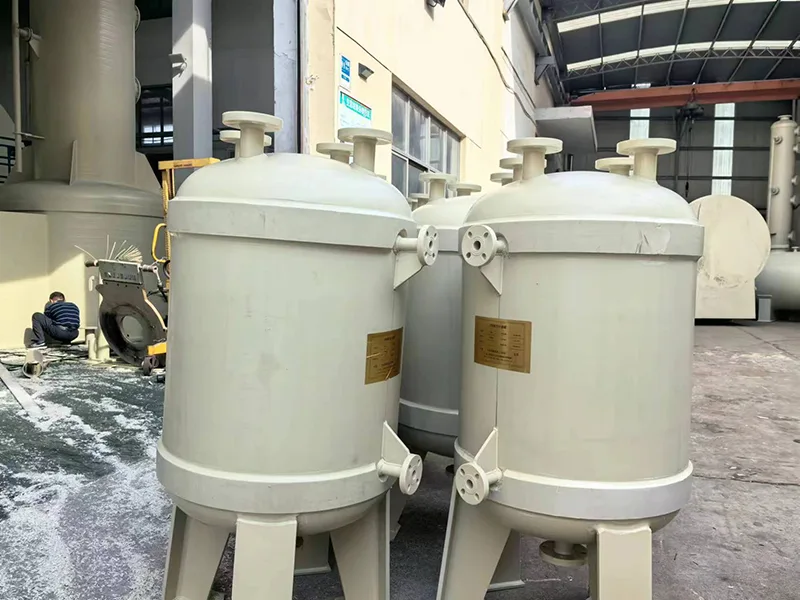

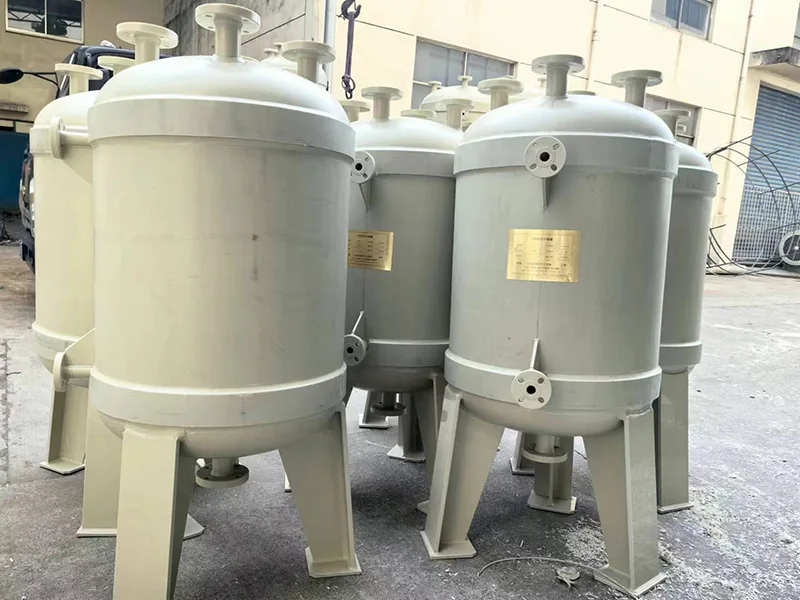

Our PPH vacuum metering tank is manufactured with large-scale equipment in structural design. The cylinder is formed by the PP extrusion integral winding process, achieving no welds in the cylinder. This not only enhances the strength but also makes the appearance smooth and beautiful.Its structure has various forms, including vertical and horizontal, and vertical is divided into hanging ear vertical and support foot vertical, which can be selected according to different application scenarios. In addition, the equipment is equipped with high-precision vacuum gauges and seals, which can accurately measure and record vacuum degrees, meeting the needs of vacuum degree measurement in different fields.
PPH vacuum metering tanks are often installed at the front end of bottom-suction water pumps without self-priming function. Before starting the pump, fill the water to a certain height through the water replenishment port at the top of the metering tank.After opening the water pump, the liquid level in the tank drops. As the water pump continues to work, when the negative pressure reaches a certain degree, the material in the low tank can be hydraulously pumped into the metering tank.In this process, the metering tank can accurately measure the incoming material, and can control the material delivery and storage according to the actual demand to achieve accurate material management.
