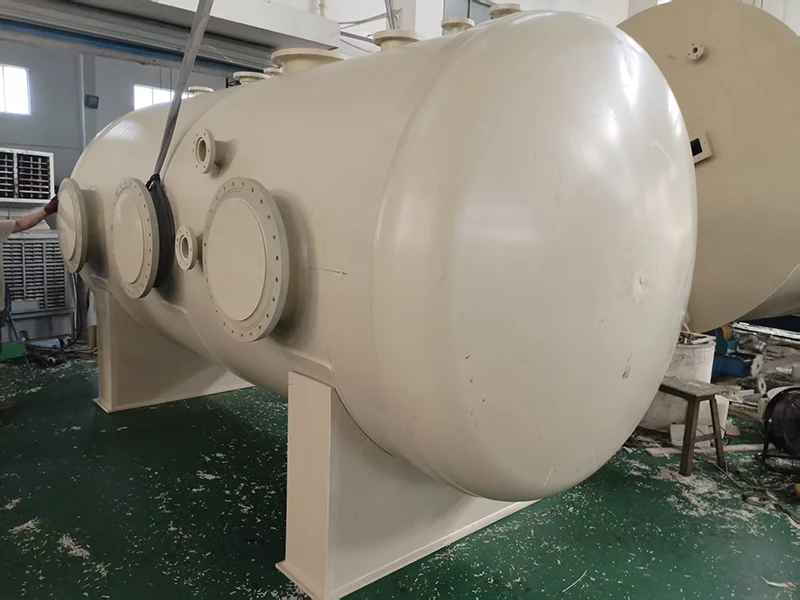

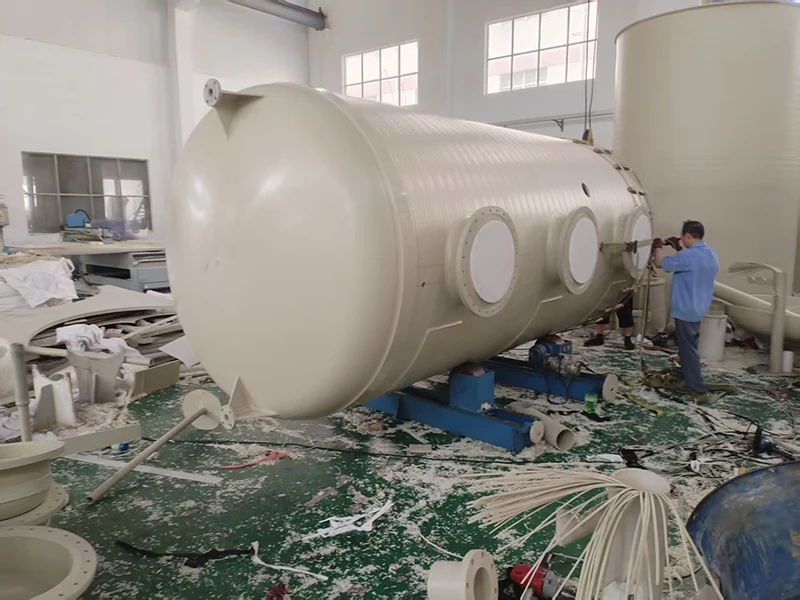

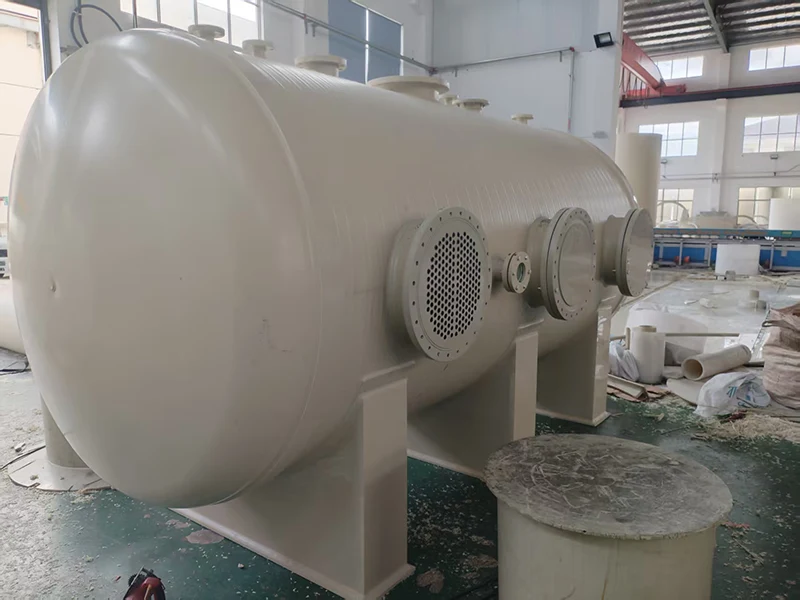

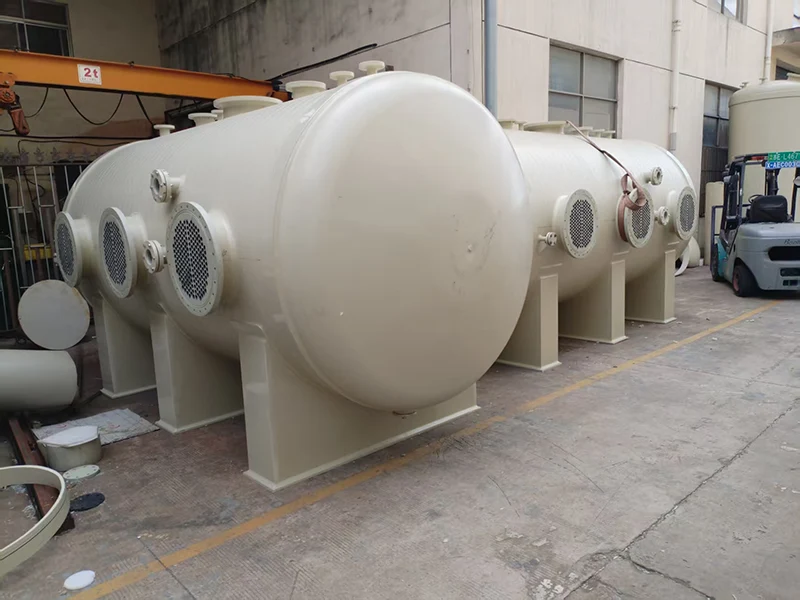

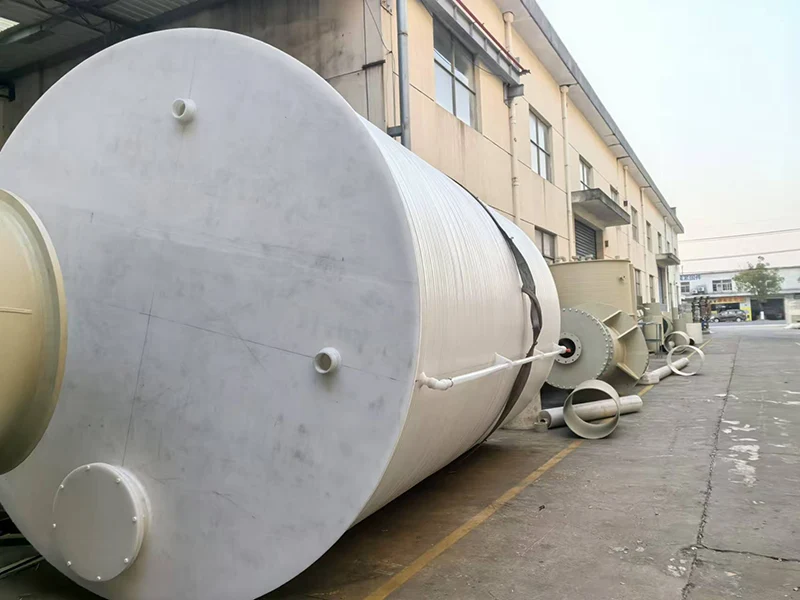

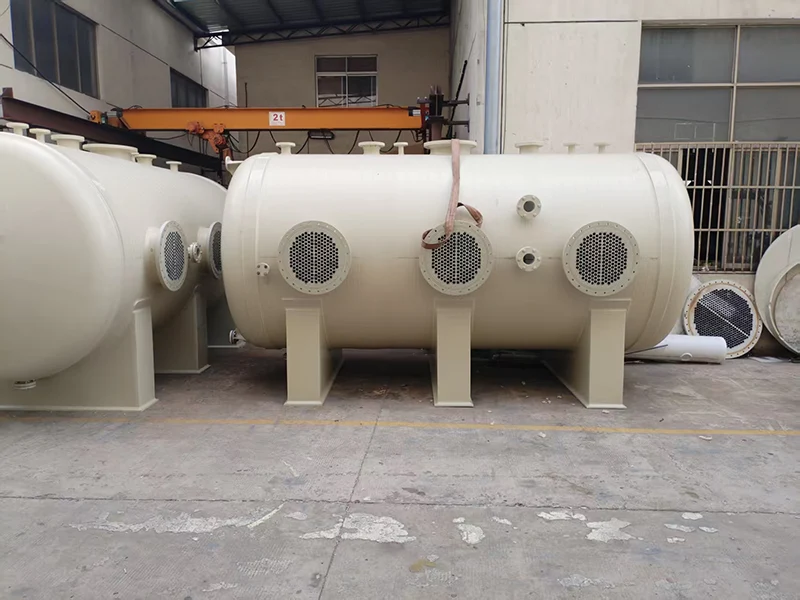

The Xinda Chemical China Polypropylene Horizontal Storage Tank operates between -10°C and 120°C. It is manufactured using a seamless, one-step process of pellet heating, extrusion, and winding. The head is injection molded in a single step using the same grade of pellets, creating a seamless, weld-free design. It offers excellent corrosion resistance, lightweight construction, and low cost.
|
Feature Category |
Detailed Description |
Notes/Explanations |
|
Operating Conditions |
Operating Temperature: -10°C to 120°C. |
Suitable for a wide temperature range. |
|
Operating Pressure: Normal pressure (≤0.1MPa) |
it is suitable for atmospheric or slightly positive pressure environments. |
|
|
Structural Features |
Leak-proof weld-free |
typically referring to the rotational molding (one-shot molding) process, eliminating the risk of leakage from welds. |
|
Capacity Range |
0.5m³ to 100m³ |
it is suitable for small, medium, and large storage needs. |
|
Material Advantages |
Lightweight (only 1/6 to 1/8 of a steel tank) |
facilitating transportation and installation, and reducing foundation load. |
|
Service Life |
Long (over 15 years) |
with excellent corrosion and aging resistance. |
|
Installation and Maintenance |
Easy Installation |
Lightweight and simple structure, it has Easy Installation. |
|
Standard Configuration |
Inlet/outlet ports and liquid level gauge interface |
meet basic material handling and liquid level monitoring needs. |
|
Optional Function |
Heating/insulation function |
optional, based on the characteristics of the stored material and ambient temperature requirements. |
1. The Polypropylene Horizontal Storage Tank has excellent chemical resistance. It is stable below 80°C, and exhibits good tolerance to organic solvents, for example, alkanes, alcohols, and aldehydes at room temperature.
2. Its structure is secure and its sealing is also excellent. Our one-piece molding process eliminates the risk of weld leaks, so we can make sure an excellent sealing performance, and this tank effectively reduces environmental pollution and safety incidents caused by material leaks.
3. With a specific gravity of only 0.91-0.93, it weighs significantly less than metal storage tanks. This simplifies handling, installation, and maintenance to reduce labor and time costs.
4. It has lower manufacturing and maintenance costs than metal storage tanks, so that's why it is particularly suitable for small and medium-sized enterprises with low-pressure, small-capacity (e.g., 2000L) storage needs.
