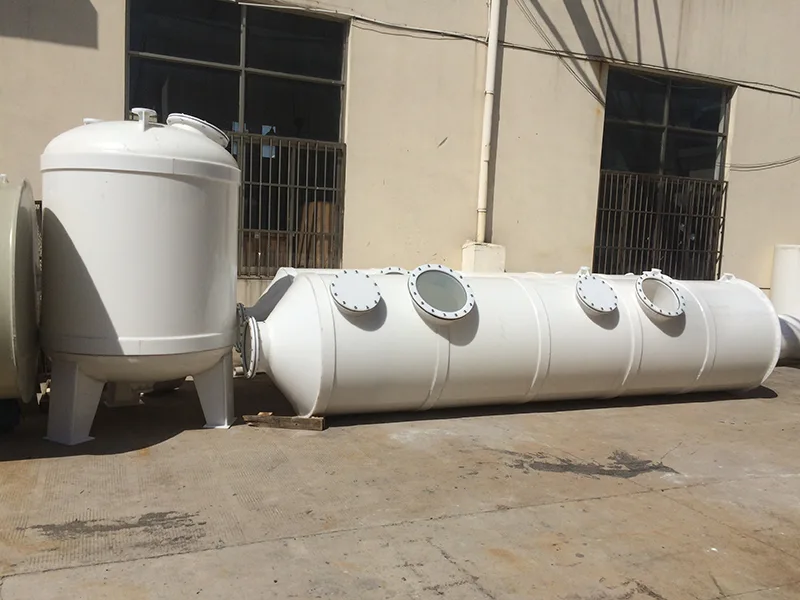

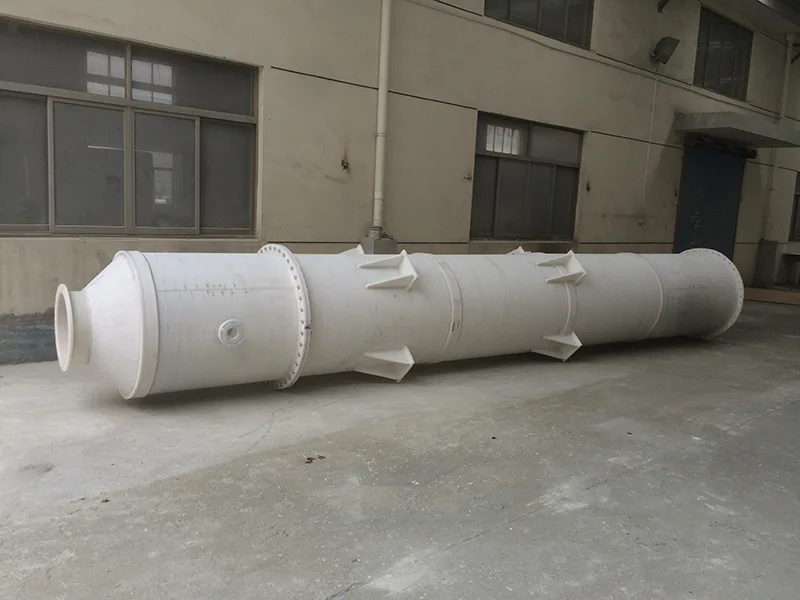

The polypropylene exhaust gas purification tower is produced by the professional Chinese manufacturer Xinda Chemical. It’s core is made of corrode-resistant polypropylene (PP) material, which can effectively treat acidic gases (such as HCl), alkaline gases (such as NH₃) and some organic volatile substances produced by the chemical, electronics, pharmaceutical, electroplating and other industries.The device achieves efficient purification through a combination of spray, filler absorption, and chemical reactions.Depending on your specific exhaust gas composition, concentration and air volume, we can provide customized designs and solutions to ensure emissions compliance and stable and reliable operation.
Our polypropylene exhaust gas purification tower is a kind of high efficiency and environmental protection device for treating industrial waste gas.Its core function is through the combination of chemical absorption and physical separation, the removal of toxic and harmful components in the exhaust gas (such as acid gas, alkaline gas, organic volatile substances, etc.), to achieve emission standards.This equipment is made of polypropylene (PP) material and features corrosion resistance, light weight, insulation and easy processing.
It’s widely used in chemical industry, PCB (printed circuit board), printing and dyeing, medicine, steel, electroplating, power plant and other industries, especially suitable for hydrogen chloride (HCl), ammonia (NH₃), benzene substances, rosin sofue and other complex waste gas purification treatment.
After the exhaust gas is introduced into the tower by the polypropylene exhaust gas purification tower, it undergoes the following purification process:
|
Stage |
Process Description |
|
1. Pretreatment Stage |
In the pretreatment stage, the exhaust gas is filtered through the filter to remove solid particles and prevent the packing layer from blocking. |
|
2. Absorption Reaction Stage |
The gas flows upward through the packing layer and is in complete contact with the absorber (such as 5% sodium hydroxide solution) ejected at the top of the tower.A neutralization reaction occurs (e.g., an acidic gas reacts with an alkaline solution). |
|
3. Demisting & Separation Stage |
The purified gas in the defog separation stage removes water through the defog section to prevent the entrain of fog droplets and secondary pollution. |
|
4. Discharge Stage |
The treated gas is discharged through the overhead smoke exhaust chimney, and the waste absorption liquid is sent to the sewage treatment station for further treatment.. |
