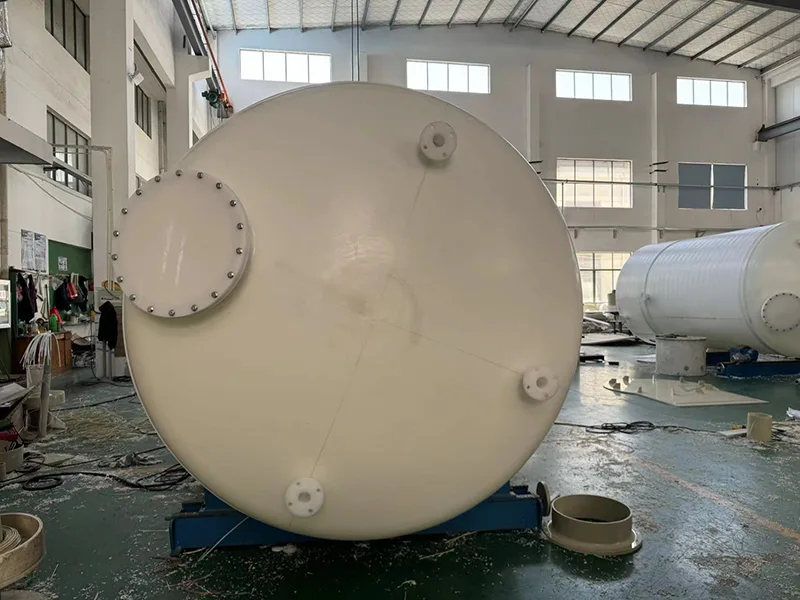

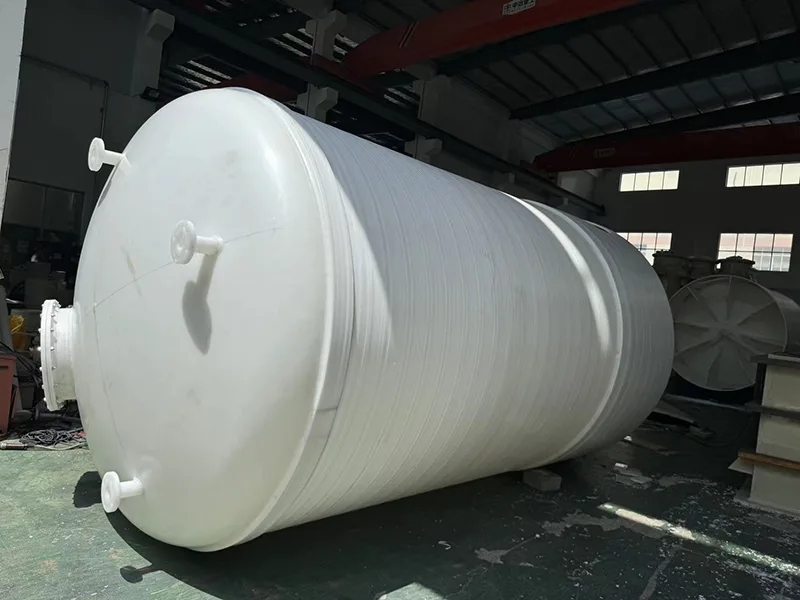

Polypropylene Upright Storage Tank

Xinda Chemical, as a professional manufacturer, support customized services for polypropylene upright storage tank.The storage tank is made of pure polypropylene (PP) or enhanced polypropylene (PPH) by winding or overall welding process. The tank has no weld and no leakage, and can withstand the corrosion of dilute sulfuric acid, hydrochloric acid, hydrogen peroxide and other acid and alkali solutions for a long time. Its vertical design particularly saves floor space. The bottom can adopt a conical structure, facilitating the complete drainage of materials. It is especially practical for media with sedimentation.

The outer side of the tank can be optionally reinforced with steel belts or steel frames to enhance structural stability and safety.It is widely used in chemical raw material storage, environmental protection industry pickling waste liquid collection tank, electroplating liquid storage tank, temporary storage of drilling mud and dosing system in water treatment (PAC/PAM solution barrel) and other scenes.We can provide a complete solution from design to production according to the characteristics of your storage media, required volume, working pressure and site installation space.

Comparison of Each Type of PP Storage Tanks

Structural design

Tank and wall thickness: The wall thickness should be determined according to the properties of the storage medium (such as corrosion, temperature) and capacity to ensure strength and stability. In some scenes, modified PP materials are used to enhance high temperature resistance.

Interface configuration: Standard equipped with feed port, discharge port, liquid level gauge port and manhole, which is convenient for material monitoring and maintenance. Some models are added with pressure discharge devices to deal with volatile media.

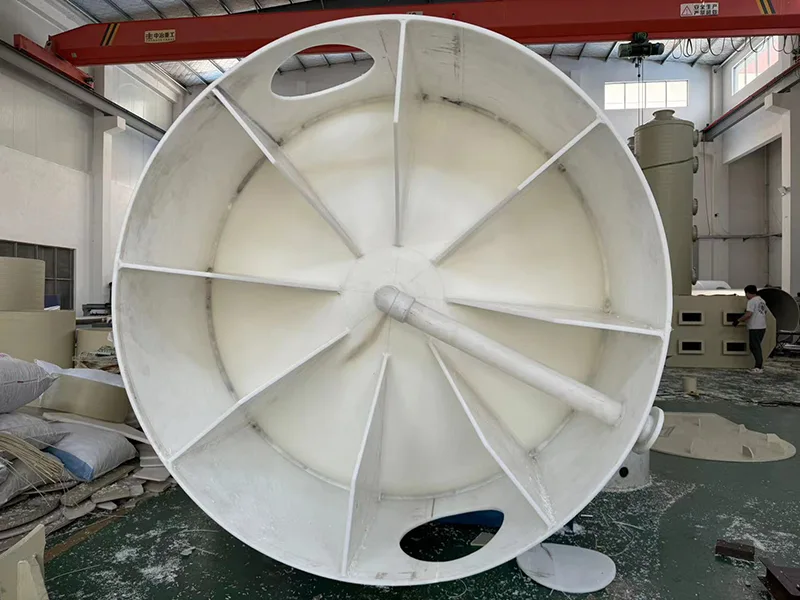

Support structure: THE bottom of the flat bottom or reinforced design, with anti-slip base, improve installation stability, especially suitable for long-term use in fixed sites.

Core performance advantages

Outstanding corrosion resistance: Our polypropylene upright storage tank’s main material, polypropylene (PP), can withstand the vast majority of inorganic acids, alkalis, salt solutions and some organic solvents (such as dilute sulfuric acid, hydrochloric acid, ammonia water, etc.). Only a few strong oxidizing media may cause swelling. It can replace expensive materials such as stainless steel and titanium alloy.

Lightweight and high strength: the density is about 1/8 of the metal storage tank, and the transportation and installation costs are significantly reduced. At the same time, the rolling molding process is integrated, and the weld-free structure improves the impact resistance and tensile strength, and it is not easy to deformation and rupture under normal use.

Safety and health guarantee: the material is non-toxic and tasteless, in line with national health standards, can store food additives, pharmaceutical intermediates and other sensitive materials, sealed structure effectively prevent leakage and external pollution, to meet the storage and transportation requirements of dangerous goods.Long-term durability: The use of PP seamless winding process, anti-oxidation, anti-aging performance is excellent, the service life can reach more than 15 years, and the internal and external anti-corrosion characteristics are suitable for high corrosion environment.
