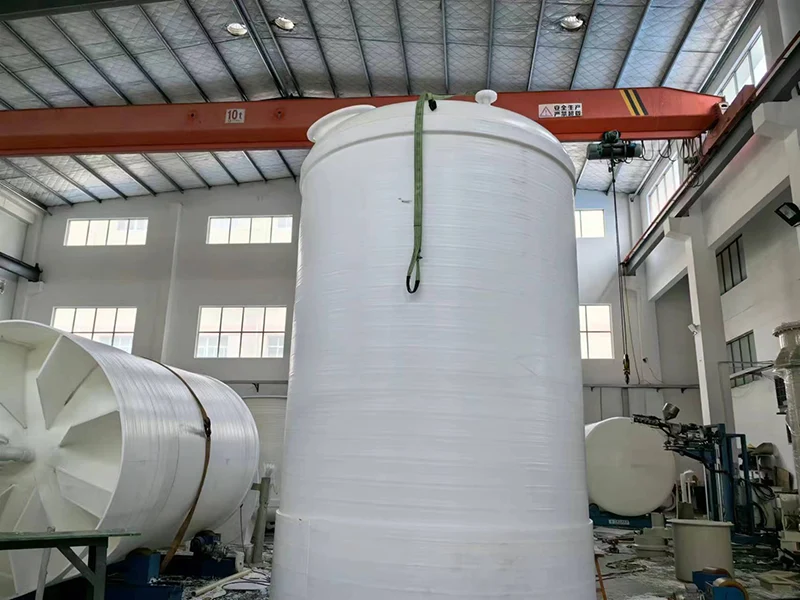

Xinda Chemical's durable Polypropylene Upright Type Storage Tank is a vertical storage device primarily constructed of polypropylene (PP). It is a great choice for storing corrosive, ambient, or moderate-temperature media in a variety of industries due to the material's inherent chemical stability and physical properties.
Its core advantages include:
Strong corrosion resistance
Excellent sealing performance
Lightweight and high strength
Moderate temperature resistance
This tank is available in either a hanging-ear upright or flat-bottom upright configuration, with capacities ranging from 0.5m³ to 80m³. Customizable port configurations (inlet, outlet, level gauge interface, etc.) and additional features are available. Its smooth, scale-free interior is non-toxic and compatible with automated liquid level monitoring. It's particularly suitable for small and medium-sized storage applications with limited space and high corrosive environments. And it also offer significantly better cost-performance than traditional storage tanks such as stainless steel and fiberglass. It weighs only 1/5 to 1/10 of a metal tank, reducing transportation and installation costs, and boasts a service life of over 15 years (UV-resistant treatment required for outdoor use).
|
Parameter Category |
Specific Content/Indicator Description |
Detailed Description |
|
Main Material |
Polypropylene (PP) |
density approximately 0.91 to 0.93. |
|
Chemical Resistance |
Strong |
Resistant to most inorganic acids (sulfuric acid, hydrochloric acid), alkalis (ammonia), and organic solvents (alcohols, ketones, etc.) at room temperature. |
|
Operating Temperature |
Continuous use: -10°C to 80°C, suitable for medium and low-temperature storage |
modified PP can withstand temperatures exceeding 100°C. |
|
Molding Process |
Mainly one-piece molding |
effectively reducing weld gaps and ensuring tank integrity and sealing. |
|
sealing performance. |
Excellent |
Combined with specialized seals, it effectively prevents liquid leakage and gas volatilization, ensuring media purity. |
|
Physical Characteristics |
Lightweight and Highly Strong. |
Lighter than traditional metal tanks, it facilitates transportation and installation, and meets the pressure requirements of conventional operating conditions. |
|
Applications |
Chemical, Environmental, and other industries. |
Ideal for storing corrosive materials. |
Cylinder: Polypropylene Upright Type Storage Tanks are constructed from polypropylene sheets, either rolled, welded, or integrally injection-molded. The vertical design maximizes vertical space and reduces floor space.
Ends and Ports: The top is typically a flat or oval end, and it is equipped with inlets, outlets, manholes, and level gauge ports. The bottom features a tapered or flat bottom for easy material drainage.
Support and Reinforcement: The bottom is supported by a skirt or legs. Large tanks equip with external reinforcement ribs to enhance overall stability.
1. It can be used in the Chemical Industry. Storage of acid and alkali solutions, chemical intermediates, and liquid raw materials, like corrosive materials in fertilizer and dye production.
2. We can use the tanks to collect and temporarily store industrial wastewater and waste liquids, or to store chemicals during treatment.
3. This Food-grade certified polypropylene storage tanks can store food additives, liquid pharmaceuticals, and more. And it provides non-toxic, non-contaminating properties.
4. Polypropylene Upright Type Storage Tanks can be used for temporary storage of construction glues, coatings, and liquid additives, or as temporary water storage tanks on construction sites. They are corrosion-resistant and then suitable for outdoor environments.
