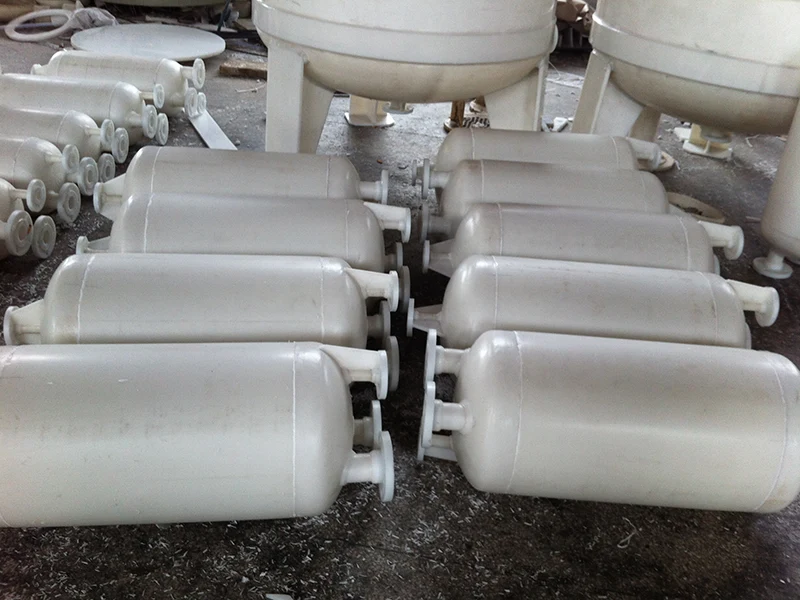

The polypropylene vacuum metering tank from Xinda Chemical factory is a vacuum metering device made primarily of polypropylene (PP). It offers core features such as corrosion resistance, high-precision metering, and environmentally friendly recyclability. It is widely used in material storage and metering applications in the pharmaceutical and food industries. For advantages of the material, it is lightweight, easy installation, high-temperature resistance, low scaling, and easy cleaning. This vacuum metering tank is equipped with a high-precision vacuum gauge and seals to make sure accurate and stable vacuum measurement. Some models also feature explosion-proof features for enhanced safety.
|
Parameter Category |
Specific Content/Indicator Description |
Detailed Description |
|
Working Pressure |
≤0.1MPa |
Very suitable for operation in atmospheric or slightly positive pressure environments. |
|
main material |
PP (polypropylene) or PVC (polyvinyl chloride) |
be selected based on the corrosiveness and temperature requirements of the storage medium. |
|
temperature resistance of PP |
−10∘C∼100∘C |
suitable for a wide temperature range and exhibits strong corrosion resistance. |
|
temperature resistance ofPVC |
−10∘C∼60∘C |
very suitable for ambient or lower temperatures and exhibits excellent corrosion resistance. |
|
Main Function |
Liquid quantitative filling and metering |
Core functions for filling and accurately metering materials. |
|
Metering Performance |
High precision |
Make sure accurate dosing and metering in industrial production. |
|
Structural Features |
Compact design |
small footprint, It is easily integrated into existing production lines. |
|
Volume range |
0.1m³ to 5m³ (customization supported) |
It is suitable for small and medium-sized filling and metering needs. |
Depending on installation requirements, polypropylene vacuum metering tanks are primarily available in two configurations.

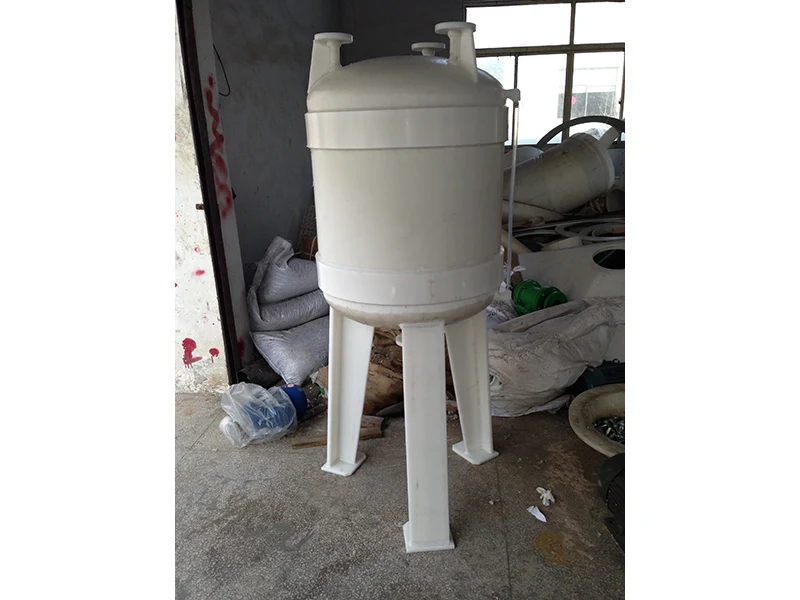

Vertical: This product can be further subdivided into vertical with hanging ears and vertical with legs. They are suitable for applications where space is limited or vertical installation is required.
Horizontal: Suitable for floor placement, facilitating horizontal material transport and storage.
Because it has high corrosion resistance, high cleanliness, and hygienic standards, this equipment is widely used in the chemical, petroleum, pharmaceutical, food, oil, printing and dyeing, metallurgy, environmental protection, and light industry industries for material storage, metering, and buffering. It is very suitable for applications involving corrosive media or those requiring stringent hygiene requirements, like pharmaceutical and food processing.
