The PP Shell And Tube Condensers are manufactured by professional Chinese manufacturers Xinda Chemical, offering wholesale and custom services.The core of the equipment is made of high purity polypropylene (PP) or graphite modified polypropylene tube, which has excellent corrosion resistance to acid, alkali and salt, and can completely replace the application of traditional materials such as stainless steel and enamel in corrosive environments. Its tubular structure design is compact, with a large heat exchange area and high condensation efficiency. Meanwhile, the material itself has the advantages of no scaling, light weight (specific gravity about 0.91), and easy maintenance.
It can work stably for a long time at temperatures below 110°C. It is widely applied in solvent recovery in chemical production, distillation condensation in the pharmaceutical industry, steam cooling in food processing, and waste gas treatment in the environmental protection field, etc. We can provide design and production ranging from standard models to fully customized ones based on your specific medium composition, heat load, installation space and pressure requirements, ensuring that the equipment is perfectly matched with your process system and achieving stable operation over a long period and at low cost.
|
Comparison Item |
Standard PP Material Characteristics |
PP Graphene-Enhanced Material Characteristics |
|
Corrosion Resistance |
Resistant to acids, alkalis, and most organic solvents |
Maintains excellent corrosion resistance with improved stability |
|
Temperature Resistance |
Suitable temperature range: -10°C to 115°C |
Same or improved temperature range (-10°C to 115°C or higher, depending on process) |
|
Lightweight Design |
Density approx. 0.9 g/cm³, low installation and maintenance costs |
Density similar to or slightly higher than standard PP, but higher cost-effectiveness due to improved performance |
|
Thermal Conductivity |
Relatively low (typical for standard PP) |
30%~50% higher thermal conductivity than standard PP |
|
Heat Transfer Efficiency |
Suitable for general heat exchange applications |
Significantly improved heat transfer efficiency, suitable for higher-demand applications |
|
Service Life |
Long (better than traditional metal materials in corrosive environments) |
Service life extended by 2–3 times, with enhanced aging and environmental stress resistance |
|
Environmental Friendliness |
Environmentally friendly production process, non-toxic |
Environmentally friendly and pollution-free production process, higher sustainability |
|
Cost-Effectiveness |
Lower initial investment and easy maintenance |
Higher initial cost, but long-term savings in energy consumption and replacement costs |

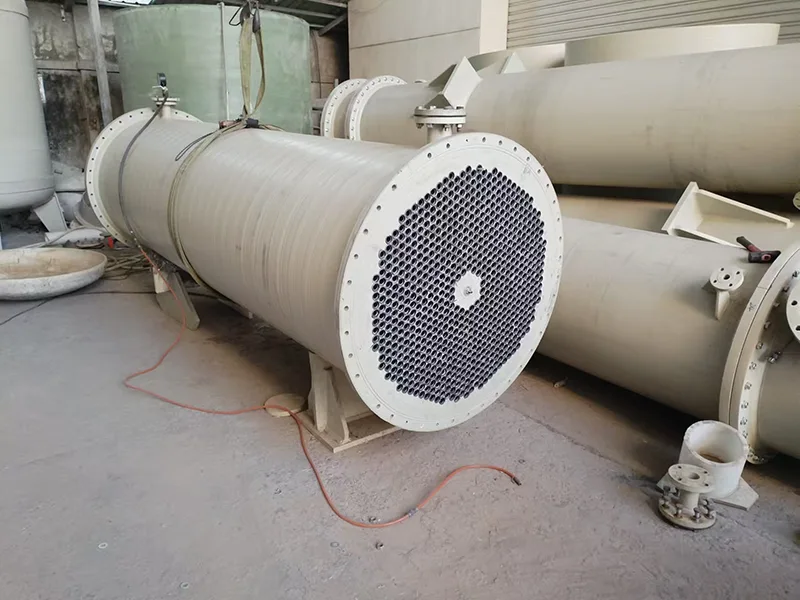

The core structure of the tube: Our PP Shell And Tube Condenser’s interior adopts multiple PP or PP graphene tubes, increasing the heat exchange area (conventional specifications include 10㎡, 20㎡, etc.) and enhancing the heat exchange efficiency per unit volume.
Horizontal and hanging layout: Reduces floor space, suitable for workshops with limited space; The wall-mounted installation can flexibly adjust the position and has strong adaptability
