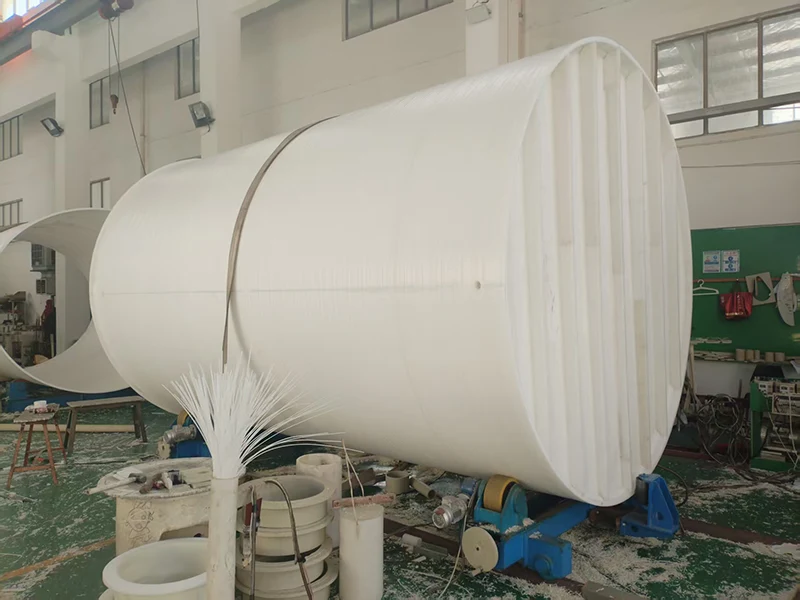

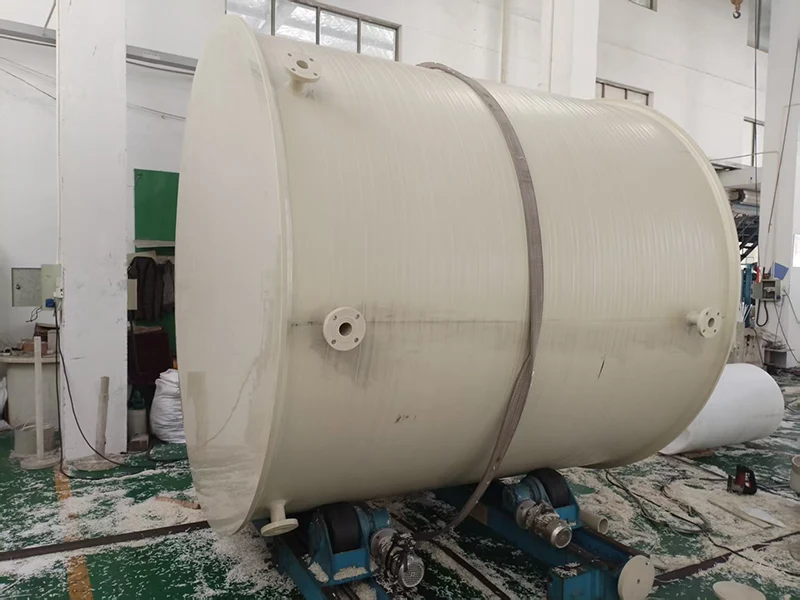

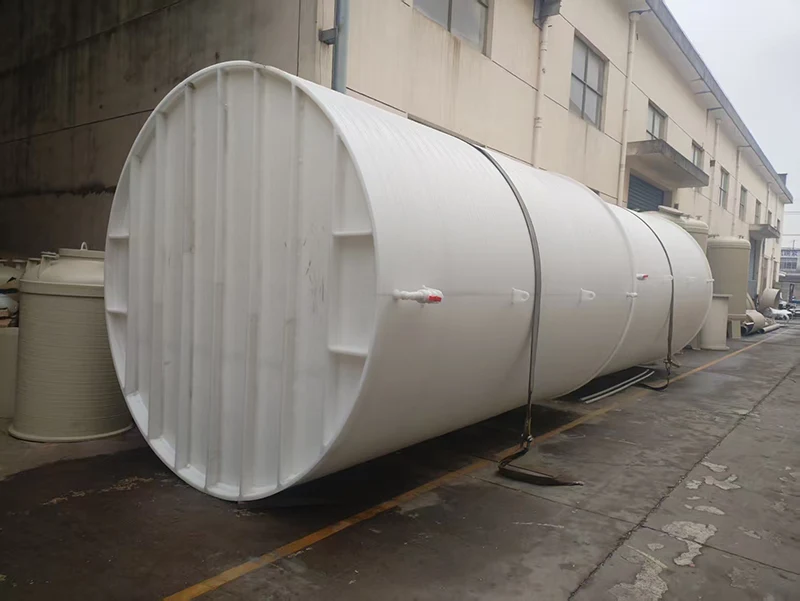

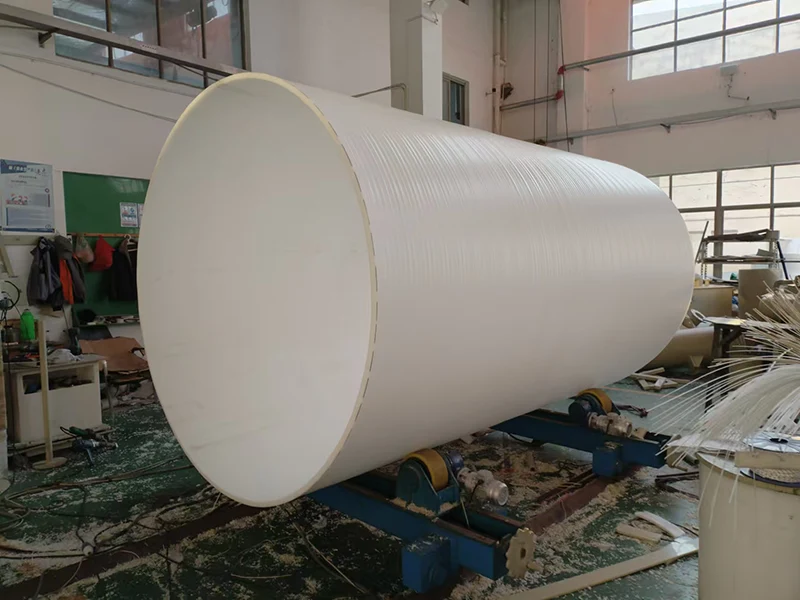

PPH Material Tank

The PPH Material Tank from Xinda Chemical factory is very suitable for caching chemical intermediates, temporarily storing electroplating solutions, and preparing new energy materials. It can safely store hydrochloric acid, hydrofluoric acid, organic solvents, and food-grade liquids. The core material of this tank product, polypropylene homopolymer, boasts a highly regular molecular structure and significantly higher crystallinity and molecular weight than standard polypropylene, so it results in several excellent properties:

First, it offers exceptional corrosion resistance, and it can withstand over 95% of acids, alkalis, and salts. It is particularly effective for storing highly corrosive liquids such as hydrochloric acid and hydrofluoric acid. Furthermore, it does not rely on a surface passivation film for protection, unlike metal tanks, which are prone to pitting corrosion, making it safer to use. Next, it's high-temperature resistant. For long-term use, it can withstand temperatures up to 100°C, exceeding the temperature requirements of ordinary plastic tanks and meeting the temperature requirements of most industrial applications.

It also offers sufficient mechanical strength. Combined with the winding process, the tank's pressure resistance is 20%-30% higher than that of ordinary tanks, and this makes it less prone to damage.

Finally, let's discuss its structural engineering and practical value. It's formed in a single process using spiral extrusion and winding, leaving the entire tank seamless. This eliminates the leaking issues previously associated with welded tanks. Furthermore, the tank wall thickness is remarkably uniform, with an error of no more than 2%, making it structurally stable. Furthermore, for safety reasons, an antistatic agent is applied to the exterior, keeping the surface resistivity within a range of 10⁶-10⁹Ω. This ensures safe use even with flammable and explosive liquids.

Structural Features

PPH Material Tank utilizes spiral extrusion and winding technology, resulting in a seamless tank body, completely eliminating the risk of leakage associated with traditional welding processes. This technology also ensures uniform wall thickness (error ≤2%) and significantly enhances structural stability. In addition, by adding antistatic agents externally, the surface resistance can be controlled at 10⁶-10⁹Ω, meeting the storage requirements for flammable and explosive media.
