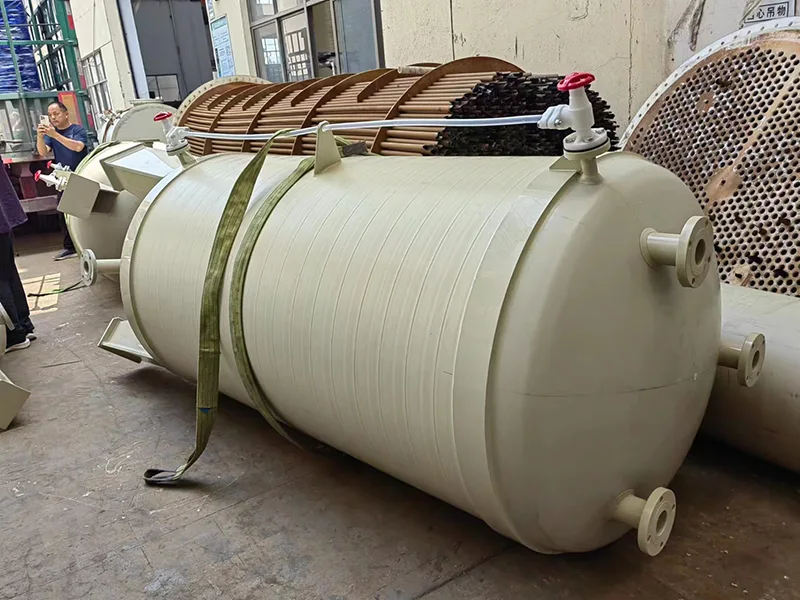

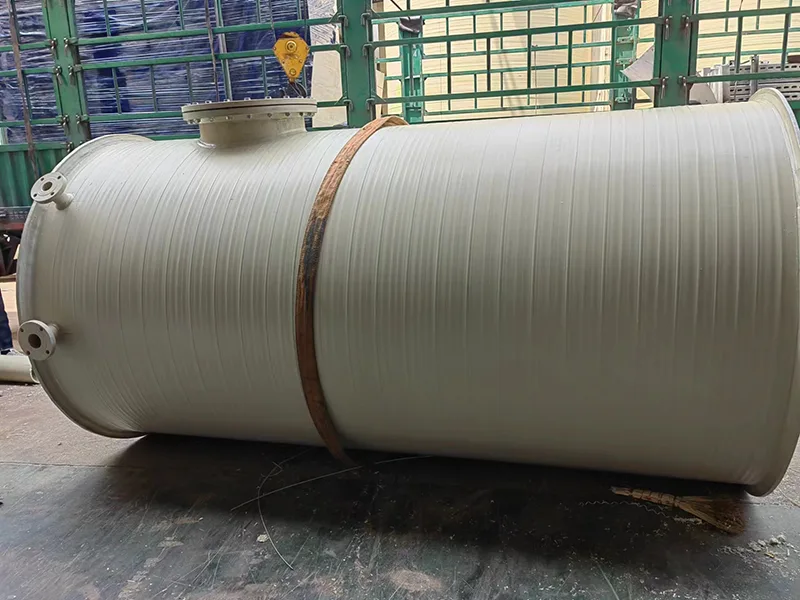

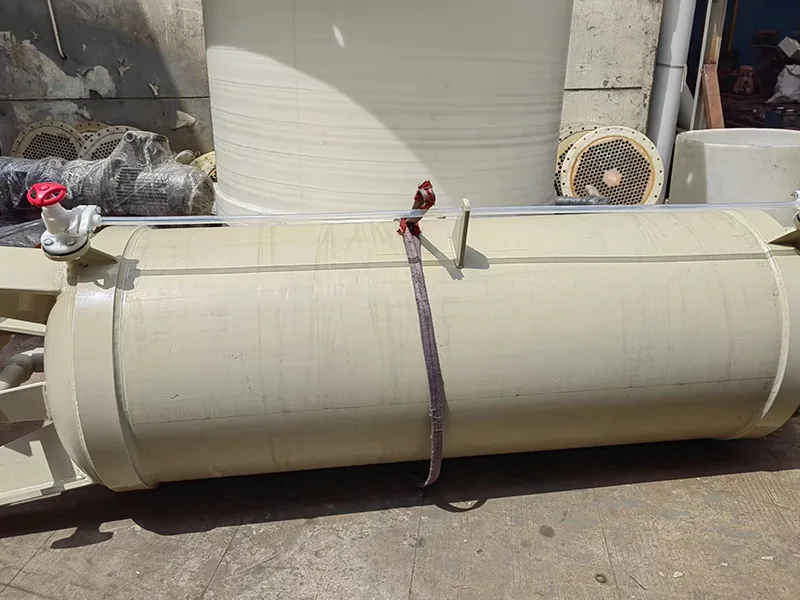

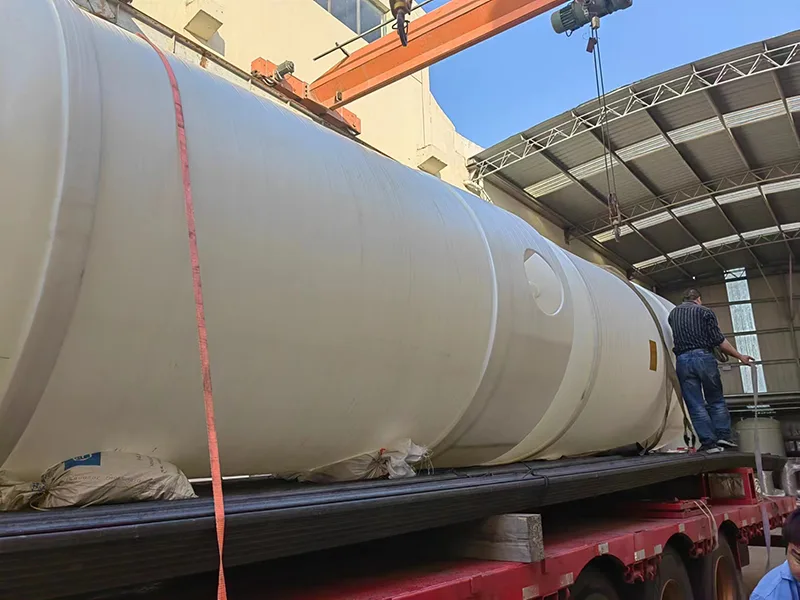

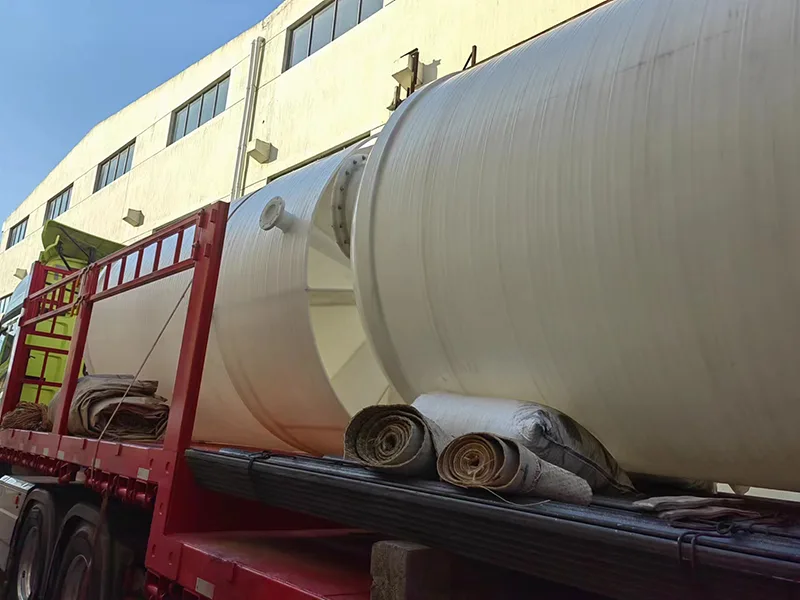

Polypropylene Horizontal Type Tank

Xinda Chemical, as a professional manufacturer of the polypropylene horizontal type tank, is able to provide customized services for PP horizontal tanks.The product is made of high quality polypropylene (PP) through welding or winding process, the tank without weld, no leakage, can withstand dilute sulfuric acid, hydrochloric acid, lye and a variety of organic solvent corrosion for a long time. Its working temperature range is usually from -10℃ to 80℃, and the working pressure is atmospheric pressure. The horizontal design makes it have a low center of gravity and good stability, making it particularly suitable for large-capacity storage in scenarios where the factory building height is limited but there is sufficient lateral space (customizing specifications from 0.1 to 100 tons), and it is also convenient to connect with low-level pipeline systems.

It is widely applied in scenarios such as the temporary storage of chemical raw materials, the storage of electroplating solutions, the collection of industrial wastewater, and the reserve of food additives. We will provide you with an economical and practical customized solution based on the characteristics of the medium you store, the required volume, the position of the pipe opening and the on-site conditions.

Technical specifications and performance characteristics

Structural features

The polypropylene horizontal type tank is formed by plate welding or winding process, the volume is usually below 50 cubic meters, the structure is stable and the center of gravity is low, which is convenient for low installation and transportation, the outer side can be reinforced by steel, the inner side can be strengthened, the service life is long under normal temperature and pressure, and the maintenance is convenient. It is an economic and practical choice to replace the traditional metal storage tank.
