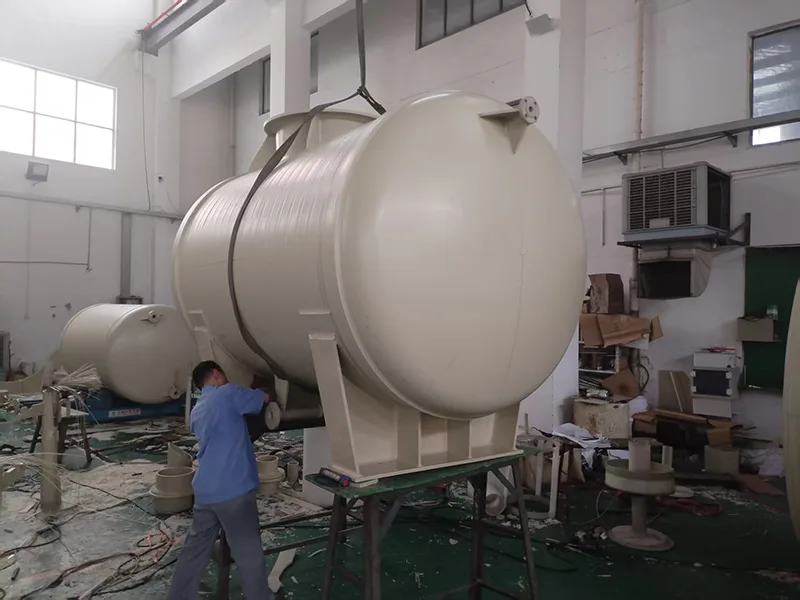

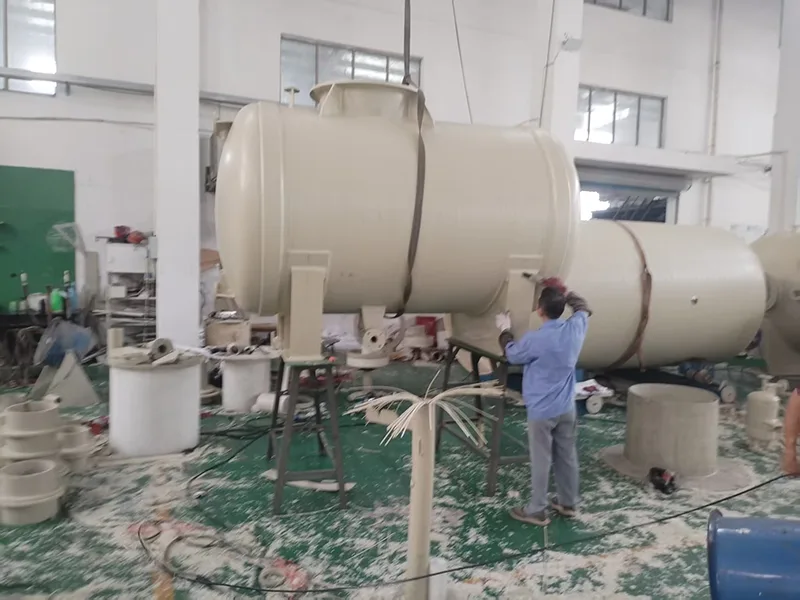

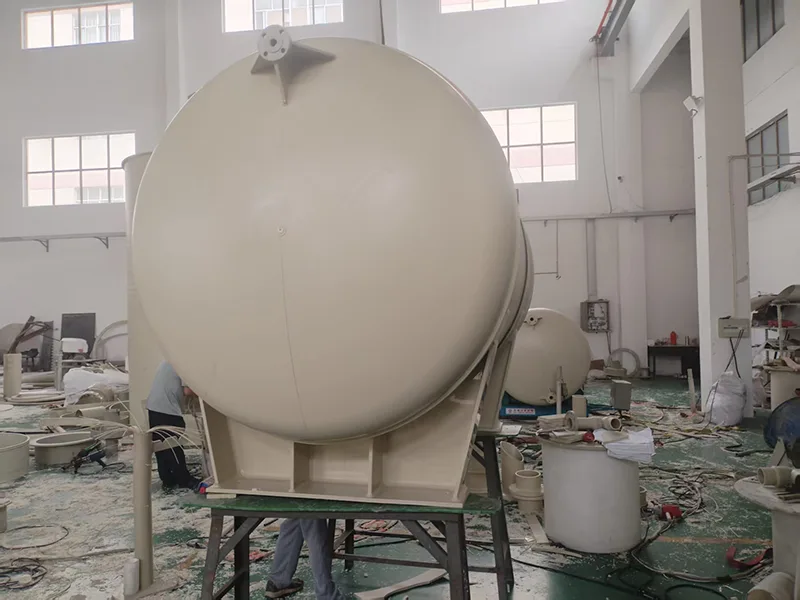

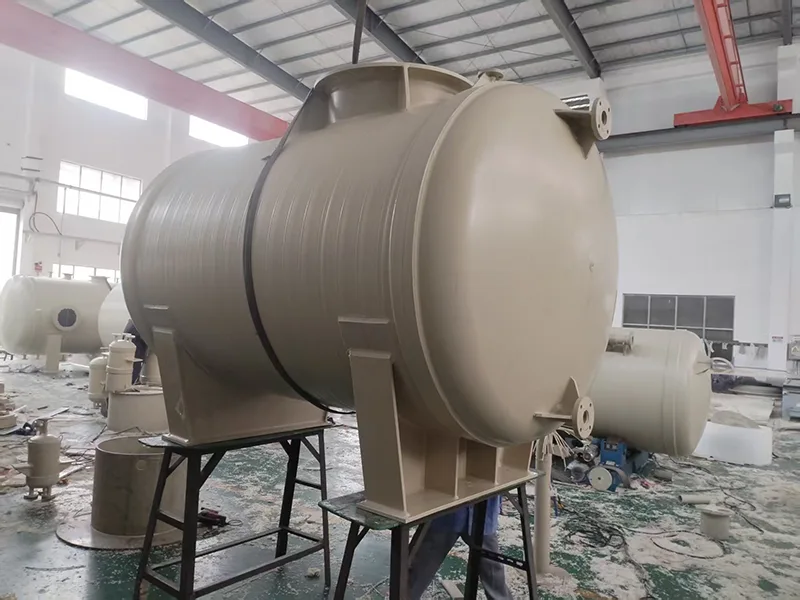

PP Horizontal Storage Tank

Xinda Chemical is a specialist manufacturer of PP horizontal storage tank and customization services provider. This tank is made of PP or PPH material by winding or welding process, which ensures the high strength and non-leakage sealing of the tank, and can safely store all kinds of acid, alkali, salt and other corrosive chemical media.Its horizontal design effectively reduces the center of gravity of the equipment and increases the stability of the storage, especially suitable for industrial scenarios that require a large amount of storage but the height of the plant is limited, or it is easy to dock with the low pipe system.

Compared with the vertical storage tank, it can usually provide a larger effective volume under the same area, and maintenance is more convenient.We can provide a one-stop customized solution from design to production based on your specific medium characteristics, required capacity (supporting tens to hundreds of cubic meters), working pressure and on-site installation space.

Core features and application fields

Our PP horizontal storage tank has the characteristics of strong corrosion resistance, light weight, high strength, excellent sealing performance, easy cleaning and maintenance, and good temperature resistance.Widely used in chemical, medicine, food, environmental protection and other fields, can store acid, alkali, pharmaceutical raw materials, fruit juice, waste water and so on.The volume can be customized, and equipped with multiple interfaces, easy to operate.Structure and Performance Overview

Difference between vertical and horizontal PP storage tanks

The main differences between vertical and PP horizontal storage tank are space utilization, structural stability, and applicable scenarios.Vertical storage tank vertical installation, occupies a small area, can make full use of the plant height space, suitable for deployment in the plane space is tight but the height is sufficient environment, its liquid static pressure is large, the tank bottom and foundation of the load bearing requirements are higher. Horizontal storage tanks are placed horizontally, with a low center of gravity and good stability. They are more suitable for sites with abundant horizontal space or limited height. Under the same volume, they usually have a larger diameter, a shallower liquid level, and a more uniform internal static pressure distribution, which is more convenient for low-level pipeline connection and manhole maintenance on the tank top. When making a choice, you need to comprehensively consider your on-site space layout, the characteristics of the storage medium, the required volume, and the convenience of installation and maintenance. There is no absolute superiority or inferiority between the two, but rather two effective forms that adapt to different engineering needs.
