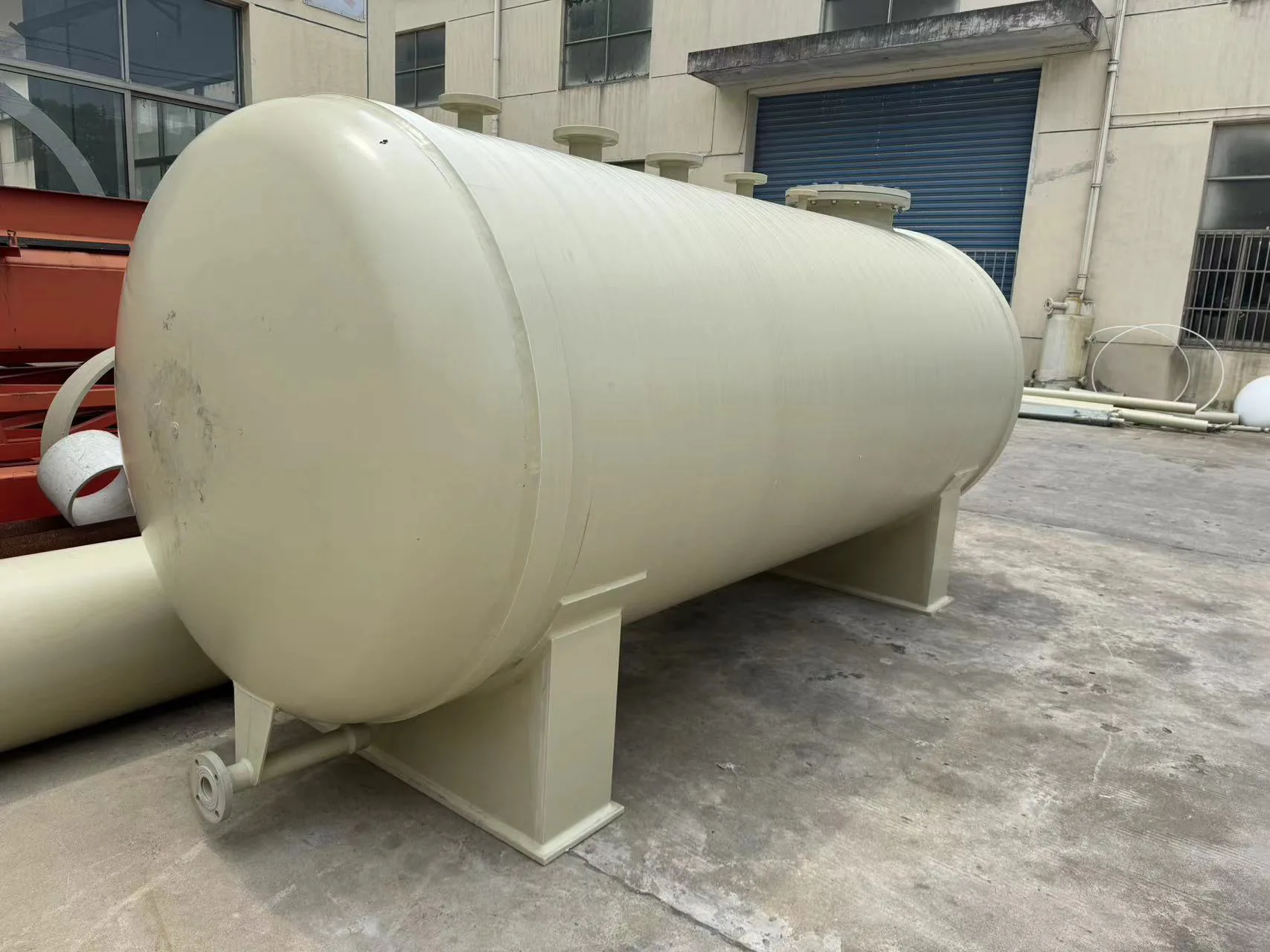

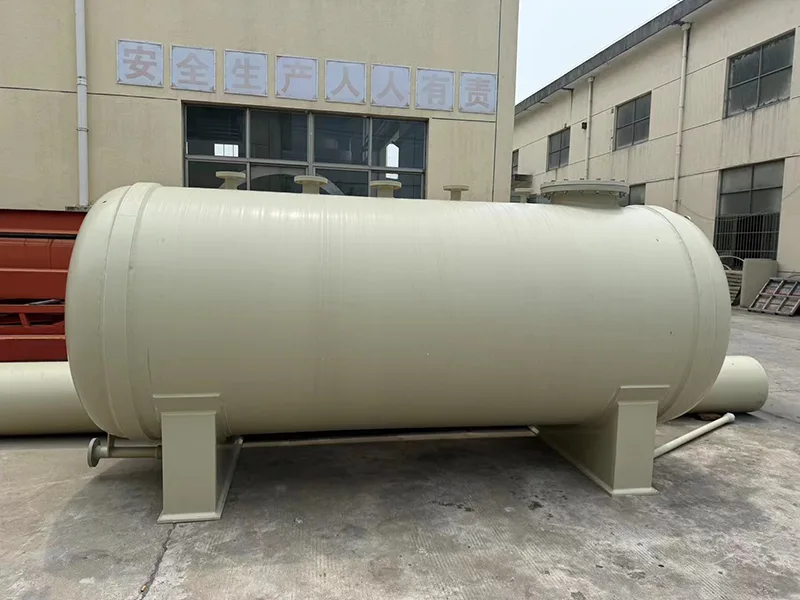

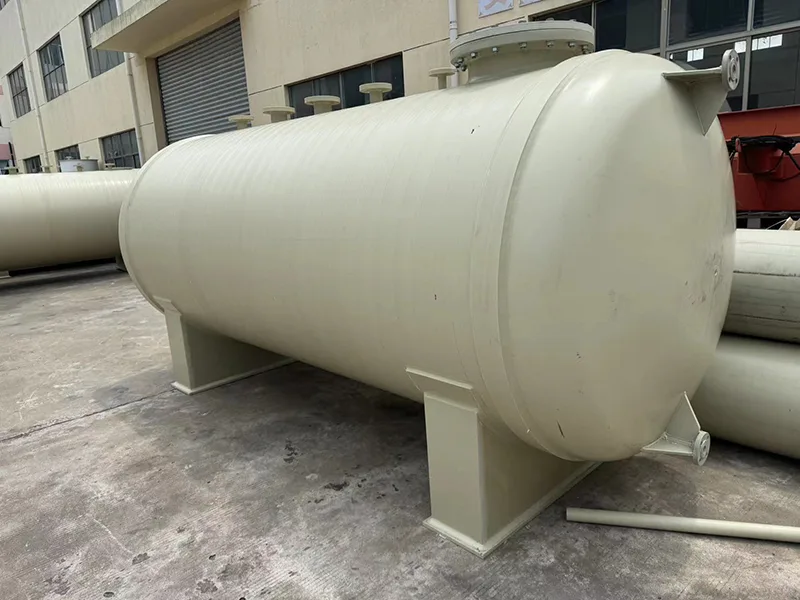

PP Horizontal Type Storage Tank

As a professional supplier, Xinda Chemical's PP horizontal type storage tank is made of high-quality polypropylene (PP) or its copolymers (such as reinforced and toughened PPH). This material endows the storage tank with outstanding chemical corrosion resistance, enabling it to safely store the vast majority of acids, alkalis and some organic solvents for a long time. Moreover, the material itself is environmentally friendly, non-toxic and meets hygiene standards.The tank adopts the whole forming process, the tank has no welds, good sealing, and avoids the risk of leakage. It has the characteristics of high strength, good toughness, light weight and so on, which is convenient for transportation and installation.

Our horizontal design of the tank makes it a low center of gravity and stable, especially suitable for installation in factories where lateral space is abundant but height is limited, or where large storage capacities (from a few to tens of cubic meters can be customized) are required. It is widely used in the storage of raw materials and intermediates in the chemical industry, the temporary storage and treatment of wastewater in the environmental protection field, and the storage of liquids in the pharmaceutical and food industries, etc. It is an ideal choice to replace traditional metal anti-corrosion storage tanks.Based on your specific media characteristics, operating temperature (e.g., PP material -10°C to 80°C, PPH material up to 90°C), the required volume and site installation conditions, we can provide a complete customized service from design to production to ensure that the equipment meets your actual needs.

Core Advantages

Structural features

Material choice: Our PP horizontal type storage tank made of PP or PPH (polypropylene copolymer) sheet, it has excellent corrosion resistance, temperature resistance and lightweight characteristics, suitable for harsh chemical environment.

Tank structure:It’s usually circular or oval horizontal cylindrical, both ends of the oval head, internal partition or support structure to enhance strength; It has a wide volume range (0.5-100m³) and can be customized.

Leakage protection: It’s equipped with sealing packing, leak-proof coating and other facilities, combined with high-quality sealing system, effectively prevent leakage of stored materials.

Interface configuration: It includes feed port, discharge port, liquid level gauge interface, vent port, etc., meeting the requirements of material input and output, monitoring and pressure balance.

Transportation and installation: It’s prefabricated in the factory, it is transported. Due to the lightweight material, it is convenient for handling and on-site installation, reducing workload and time.
