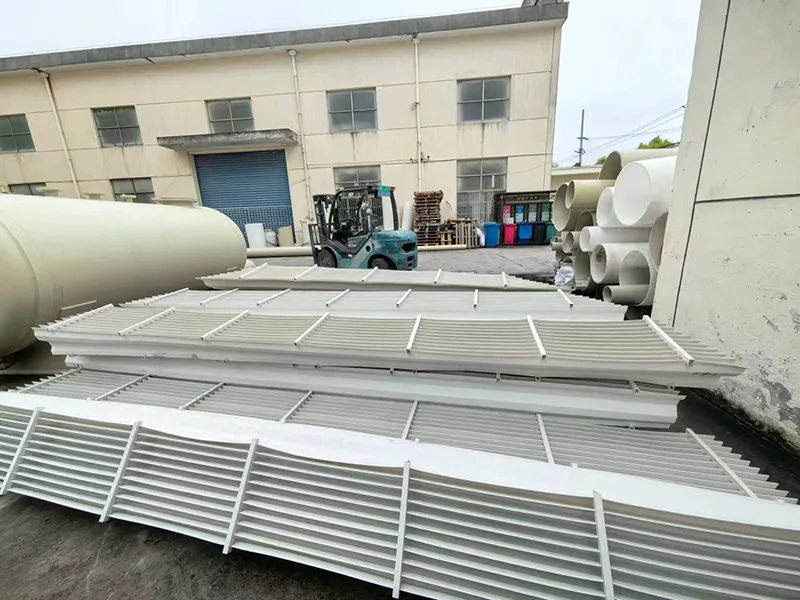

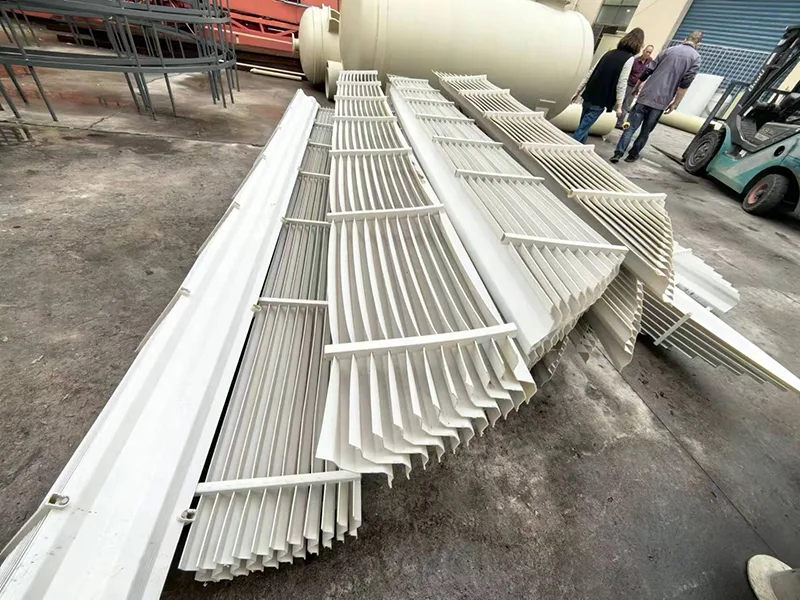

Xinda Chemical is a professional manufacturer producing PP S bending baffle which is an efficient inertial gas-liquid separation component. It is composed of multiple "S" -shaped curved polypropylene blades. When the gas carrying liquid droplets passes through these blades at a certain speed (usually within the range of 3.5-5.5m/s), the direction of the gas flow is forcibly changed multiple times. At this point, the denser droplets, due to the effects of inertial force and centrifugal force, cannot turn along with the gas. Instead, they collide and adhere to the surface of the blades, converge into a liquid flow and are discharged, achieving efficient separation.
The product has high removal efficiency for droplets with particle size greater than 3-5μm. It can effectively remove acidic fog droplets (such as sulfuric acid and sulfite) contained in the exhaust gas, thereby protecting downstream fans, heat exchangers and other equipment from corrosion.Its core advantage lies in the use of acid and alkali corrosion resistant polypropylene material, smooth surface is not easy to scale, and modular design for easy installation and maintenance.It is widely used in wet desulfurization, chemical absorption, waste gas spray washing tower on the top or side line, is to achieve clean discharge, ensure the stable operation of the system key components.
|
Category |
Description |
|
Blade Design |
S-shaped continuous folded structure (single/multi-channel), thickness 3 mm, common heights 170 mm/235 mm, smooth surface for easy cleaning, no mist elimination dead zones |
|
Material Performance |
PP (polypropylene) resistant to acid-base corrosion, temperature resistance 120–150°C. Enhanced types (e.g., glass fiber composite PP) can increase load capacity to ≤300 kg/m² |
|
Assembly Form |
Multiple blades arranged in parallel, fixed with clamping strips, forming a "labyrinth" airflow channel to increase droplet collision probability |
When the mist-containing gas flows through the S-shaped channel at a flow rate of 3.5 to 5.5m/s, due to the effects of inertial force and centrifugal force, the mist droplets strike the surface of the blades and aggregate into a liquid film. Under the action of gravity, the liquid film slides down the plates to the slurry pool, achieving gas-liquid separation. The multi-directional structure enables the uncaptured droplets to be repeatedly separated at subsequent turns, with a demisting efficiency of over 95%, and the droplet content at the outlet is ≤75mg/Nm³ (dry basis).
Core application: Wet desulfurization (FGD) system, spray tower, exhaust gas absorption tower, remove sulfuric acid mist, sulfate droplets and other corrosive media entrain in flue gas, protect subsequent equipment (fans, heat exchangers) from corrosion.Advantages
High efficiency and low resistance: PP S bending baffle ‘s multi-fold structure to improve the capture efficiency, while the pressure drop is small, low energy consumption.Easy to maintain: The surface is smooth and can be cleaned of scale by spray flushing. Installation and maintenance are convenient.
Economy: The cost of PP material is lower than that of metal, making it suitable for medium and low concentration corrosive working conditions. Its service life can reach 5 to 8 years.
